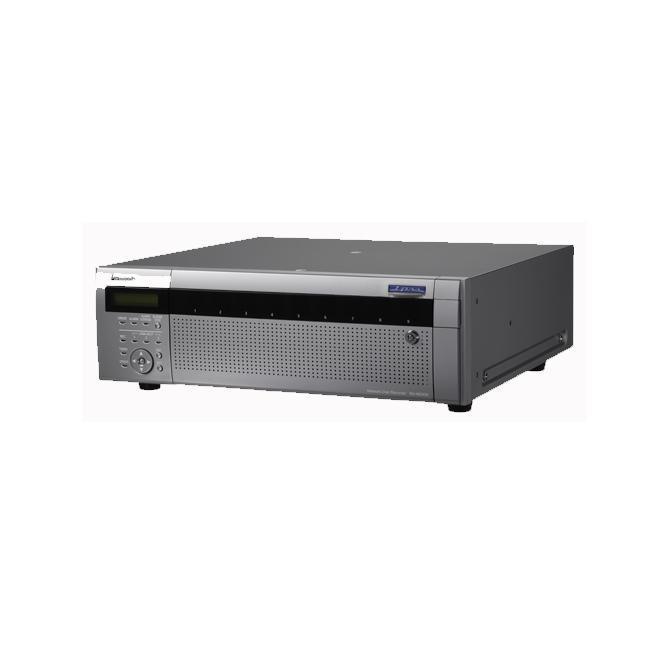

Panasonic High performance Network Disk Recorder for i-PRO Network Cameras with 9 Serial ATA HDD slots

Features :

  • H.264, MPEG-4 and JPEG multi format
  • Up to 64 network cameras can be connected without extra license fee and their images can be recorded simultaneously.
  • 200 Mbps high throughput : Best match with i-PRO Network Cameras
  • Various Recording Modes : Manual, Schedule including Event (Pre/Post), Emergency. Schedule mode includes eight recording programs with individual recording mode for each camera, and 6 time schedules per day.
  • Panasonic camera control : Pan/Tilt, Zoom, Focus, Brightness, Preset Position, Auto mode (depending on camera model).
  • Audio from i-PRO network cameras can be recorded and played back, G.726 (ADPCM) 32 kbps.
  • Cameras can be assigned to one of the 8 groups for easier browsing.
  • Flexible playback controls : Goto Date (Jump to specific time/date), Goto Last (Jump to 5 sec. - 5 min. before the record end).
  • Various display modes : Spot, Quad (16 patterns), Spot Sequence, Quad Sequence (Live).
  • Filtered search : Time & Date, Event Type, Camera number.
  • VMD search : Motion in a specified area in the recorded images can quickly be searched (works with supported i-PRO cameras).
  • 2x, 4x Digital zoom (Live/Playback)
  • Recorded images can be downloaded to a PC. Downloadable viewer software allows playback of images downloaded from the recorder.
  • Various alarm sources include 32x Terminal inputs, 64x Camera alarms, Panasonic Alarm Protocol. Flexible alarm actions include Event recording, E-mail notification, Alarm message, Camera positioning, FTP image transfer, Terminal output, Panasonic alarm protocol output, Buzzer and Indicator.
  • 2x built-in network interfaces (10Base-T / 100Base-TX / 1000Base-T) for camera recording and client access
  • Up to 16 clients can monitor images and control WJ-ND400 simultaneously.
  • FTP client function enables periodic live image transfer or recorded image transfer in response to an alarm.
  • Performance measurement function for appropriate recording frame rate setup
  • Images recorded in the SD memory card in i-PRO network cameras can be transferred to the recorder automatically even when the recorder is in recording status.
  • Setup can be made with the user friendly browser GUI. Multilingual options include English / French / Spanish / Germany / Italian / Russian / Chinese / Japanese / Custom.
  • User/Host authentication, 4 programmable user levels, 16 user priorities and User-Camera View/Control partitioning set up for sophisticated user management. Up to 32 user registrations
  • Alteration detection and recorded data encryption for data security
  • Multi-recorder-Multi-site-system can be made with optional WV-ASM200 i-PRO Management Software.
  • Up to 9 Serial ATA HDDs can be installed with the provided canisters. By RAID mode, the HDDs can be removed without interrupting the recording with hot plug support.
  • HDD capacity is expandable up to 54 HDD slots (9 HDD slots in the main unit and 5 optional WJ-HDE400 Hard Disk Extension Units each with 9 HDD slots).
  • Disk partitioning including Normal, Event, Pre-Event, Copy for flexible record management
  • RAID5/6 redundant recording for data security
  • Superior reliability with an embedded OS compared to PC-based system

Panasonic WJ-ND400 Panasonic WJ-ND400
