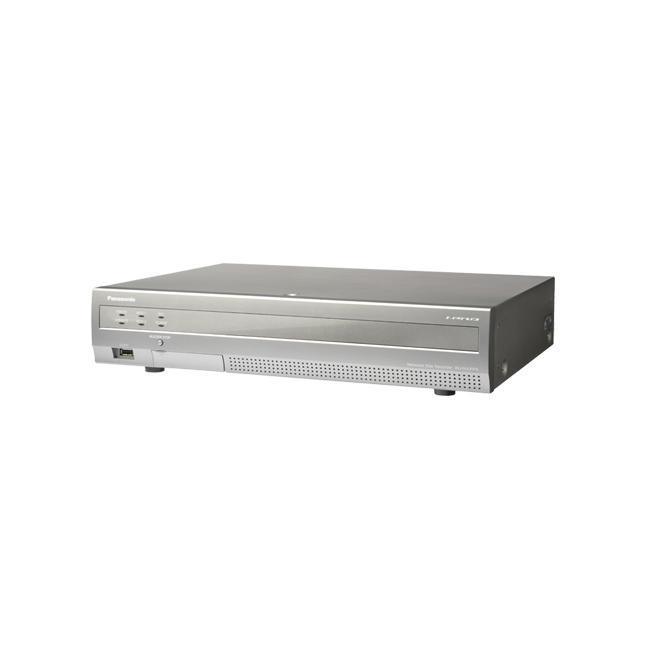

Panasonic Video Decoder built-in 32ch*1 Network Disk Recorder

Features :

  • H.264 and JPEG multi format
  • 9 network cameras can be connected and recorded as default. Up to 32 *1 network cameras can be connected and recorded.
  • Quick setup by automatic camera detection and simple setup wizard without the use of PC
  • "Referenced recording days" is automatically calculated by frame rate, image quality and HDD capacity.
  • Simple mouse operation by new GUI without the use of PC
  • Quick intuitive search with calendar and timeline
  • Live images from up to 32*1 cameras can be displayed simultaneously.
  • Supports the Full HD and 4K*2 output (HDMI) that can display recorded images and live images in high definition
  • Various alarm sources include 9x Terminal inputs, 32x Camera alarm, Panasonic Alarm Protocol. Flexible alarm actions include Alarm recording, E-mail notification, Alarm message, Camera positioning, Terminal output, Panasonic alarm protocol output, Buzzer and Indicator.
  • Camera Control: Pan/Tilt, Zoom, Focus, Brightness, Preset Position, Auto mode (depending on camera model)
  • Audio from the i-PRO network cameras can be recorded and played back, G.726 (ADPCM) 32 kbps.
  • Flexible Playback Controls : Go to Date (Jump to specific time/date), Go to Last (Jump to 30 s before the record end)
  • Various Display Modes : Spot, Multiscreen (4 / 16 split screen display, 4 / 6 / 9 / 12 / 16 / 24 / 32*1 split screen display on a full screen), Sequence (1 screen, 4 / 9 split screen display on a full screen)
  • Various Recording Modes: Schedule, Event (Pre/Post)
  • Filtered Search : Time & Date, Event Type, Camera number, Timeline
  • Recorded images can be downloaded to a PC.
  • Downloadable viewer software allows playback of images downloaded from the Recorder.
  • Equipped with a SD memory card slot and port for USB storage. It realizes a simple local copy.
  • Built-in network interface (10Base-T / 100Base-TX / 1000Base-T) forrecording and client access
  • Up to 8 clients can monitor image and control WJ-NV300 simultaneously.
  • Up to 2 HDDs can be installed. (8.89 cm (3.5 inch) Serial ATA HDD)
  • HDD capacity is expandable up to 20 HDD slots (2 HDD slots in the main unit and 2 optional WJ-HDE400 Hard Disk Extension Units each with 9 HDD slots).
  • RAID5/6 redundant recording for data security (with WJ-HDE400)
  • User authentication, 3 user levels and User level - Camera partitioning setup for user management of up to 16 user registrations
  • Multi-recorder, Multi-site system can be made with optional WV-ASM200 i-PRO Management Software.
  • Supports 360-degree network microphone (WV-SMR10)
  • ONVIF client, conformance to ONVIF Profile S. Additional Kit Additional Business Intelligence Kit WJ-NVF30 Additional Camera Kit WJ-NVE30

*1 Three Additional Camera Kits WJ-NVE30 are necessary.
*2 Only when full screen display on main monitor
