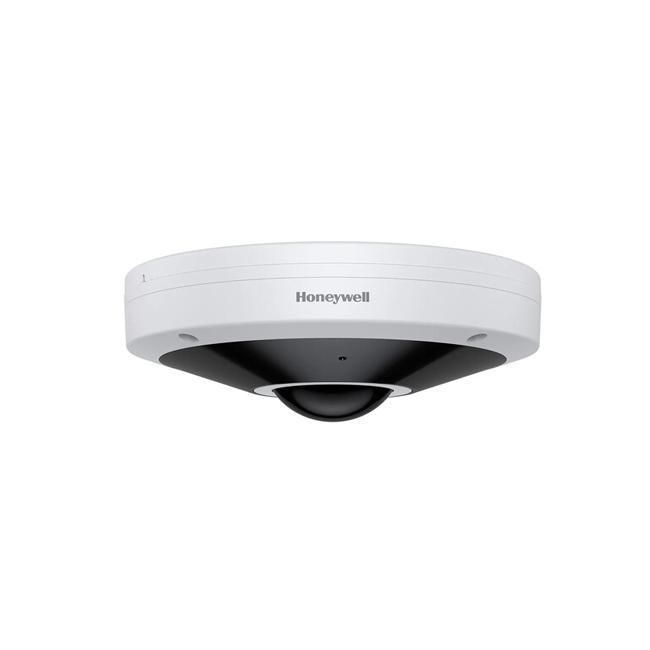

Honeywell HC30WF5R1

5MP IP WDR IR Fisheye Camera

The 30 Series cameras are a perfect fit for dealers who are looking to sell simple, larger entry-level enterprise solutions to the compliant marketplace. The solution fits SMB, entry-level enterprise, and critical applications where compliance is essential, such as Government, Utilities, Premium, Commercial, Retail, Campuses…


  • 1/2.7" 5MP (2560×1920) progressive scan imager
  • 1.16 mm F2.25, Fisheye lens
  • Angle of view 180° (H) – 180° (V)
  • Main Stream: 1920x1920 (1 ~ 25/30fps), Sub Stream: 960x960 (1 ~ 25/30fps), Third Stream: 480x480 (1 ~ 25/30fps)
  • Wide Dynamic Range (WDR) up to 120 dB
  • Low light performance (0.05 lux in color mode)
  • 20 m (66 ft) IR distance, depending on scene reflectance
  • H.265 Smart Codec video compression
  • Motion detection / Intrusion detection / People detection
  • Rugged outdoor housing with IP66 ingress protection rating and IK10 vandal resistance rating
  • Working temperature: -30°C ~60°C (-22°F~140°F)
  • On board camera storage: up to 256 GB micro SD card (not included)
  • Built-in Microphone
  • PoE (IEEE 802.3af) or 12VDC
  • ONVIF profile S & G compliant
  • Designed for use as part of video systems which comply with NDAA 2019, Section 889
