Honeywell HDZ Series PTZ Cameras

25x Zoom IR WDR PTZ IP Cameras

Honeywell’s latest HDZ PTZ is part of the growing line of IP-based products. The high definition, True Day/Night WDR PTZ cameras provide extremely crisp video with up to 2 million effective pixels and 25x optical zoom for continuous surveillance in many security applications.

Superior Image Quality
• Full HD 1080p resolution, 50/60 fps image with a 1/2.8" 2 megapixel sensor
• True WDR 120 dB ensures glare-free images
• True Day/Night provides vivid color images by day and clear blackand- white images at night with ICR (Infrared Cut Filter Removal)
• Excellent low-light performance with 3D noise reduction, saving storage and bandwidth together with H.265 codec

Flexible Surveillance Solution
• 4.8–120 mm, F1.6-F4.4, 25x optical zoom lens with 360° continuous rotation for the flexibility to clearly view the target area with desired width and depth
• H.265, H.264 and MJPEG codec, triple stream support
• Six IR LEDs provide up to 328 ft. (100 m) of illumination in dimly lit or nighttime scenes (depending on scene reflectance)
• Water resistant (IP66) camera housing
• –40°F to 158°F (–40°C to 70°C) working temperature
• Built-in Analytics in the camera, such as face detection
• Security features include individual signed certificates and data encryption

Onboard Video Storage
• Supports up to 128 GB microSDHC card for local video storage on events, continuous, or schedule, or with network interruption. Card not included

Easy to Install and Use
• Built-in High PoE (Power over Ethernet) eliminates separate power supply and associated wiring; 12 VDC input where PoE power is unavailable
• ONVIF Profile S and G compliant
• Remote configuration, motorized pan, tilt and zoom adjustments and auto focus through web client


• 4.8–120 mm, F1.6-F4.4, 25x optical zoom lens
• 1/2.8" progressive scan image sensor
• Up to 50/60 fps primary stream. Up to 25/30 fps secondary streams
• Up to triple stream support
• Ultra-low light performance
• 328 ft. (100 m) IR distance, depending on scene reflectance
• True WDR: 120 dB
• Excellent low light performance with down to 0 lux BW (with IRs on)
• Multiple, selectable compression formats (H.265/H.264/MJPEG)
• Wall mount accessory included
• Built-in Analytics, including Face detection
• Automatically restores to previous PTZ and lens position after power failure
• Choice of 12 VDC or PoE+ power inputs
• On board camera storage: up to 128 GB microSD card (not included)
• ONVIF profile S and G compliant
• Water resistant IP66 ingress protection rating

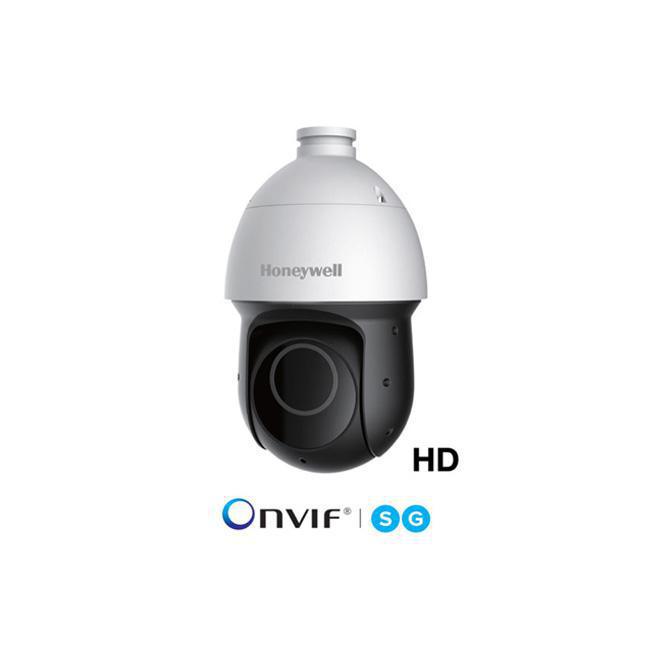

Honeywell HDZP252DI Honeywell HDZP252DI
