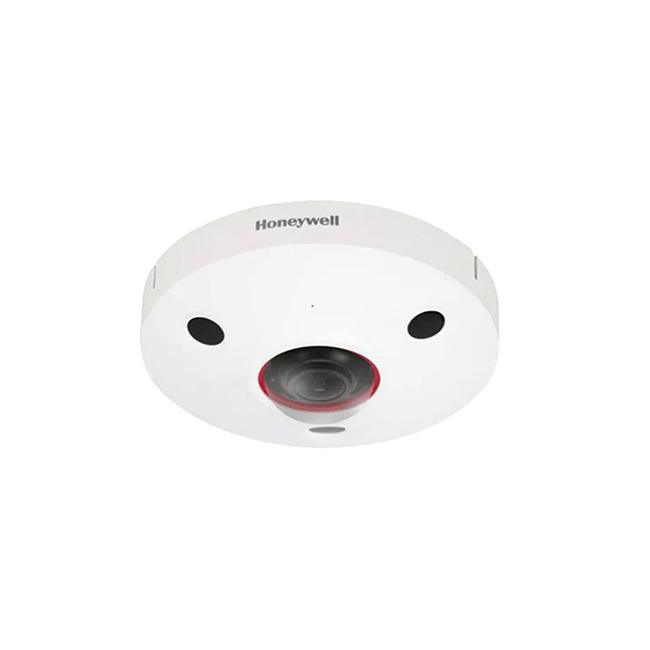

Honeywell equIP® Cameras

6 and 12 MP Indoor/Outdoor Fisheye IR IP Cameras

Superior Image Quality
• Full HD 6 MP 25/30 fps image with a 1/1.8" 6 megapixel sensor, or Ultra
HD 12 MP (4K) 25 fps image with a 1/1.7" 12 megapixel sensor
• Digital WDR (DWDR) ensures glare-free images
• True Day/Night provides vivid color images by day and clear black-andwhite
images at night using a removable IR cut filter
• Image dewarping makes the fisheye output easy to view and scan for intruders
• Embedded PTZ control within the fisheye video allows users to control the part of the 360° view to focus on
• Excellent low-light performance with 3D noise reduction, saving storage and bandwidth together with H.265 Profile codec

Flexible Surveillance Solution
• HFD6GR1: 1.7 mm, F2.0, fixed fisheye lens
HFD8GR1: 1.98 mm, F2.8, fixed fisheye lens
• H.265, H.264 and MJPEG codec, triple stream support
• IR LEDs provide up to 25 ft (8 m) of illumination in dimly lit or nighttime
scenes (depending on scene reflectance)
• Smart IR technology provides even distribution of IR
• Waterproof (IP67) and IK10 impact-resistant camera housing
• –22°F to 140°F (–30°C to 60°C) working temperature
• ONVIF Profile S and G compliant
• Security features include individual signed certificates and data
• Cameras can be retrofitted on many existing NVR installations without
requiring additional storage

Onboard Video Storage
• Supports up to 128 GB microSDHC (Class 10) card for local video storage when network is
interrupted. Card not included. Easy to Install and Use
• Built-in PoE (Power over Ethernet) eliminates separate power supply and associated wiring;
12 VDC inputs where PoE power is unavailable
• Remote configuration through web client or from the NVR
• Included accessories: security screw driver, mounting screws, mounting template, mount adapter, IR LED cover, and waterproof joint for network cable


• 1/1.8" 6 MP or 1/1.7" 12 MP progressive scan imagers
• 16x digital zoom
• Digital WDR
• 25 ft (8 m) IR distance, depending on scene refl ectance
• Wide horizontal angle of view at 185°
• Built-in cyber security hardware chipset
• Excellent low light performance with down to 0 lux BW (with IR LEDs on)
• Up to triple stream support
• Resolution: 6 MP at 25/30 fps, or 12 MP (4K) at 25 fps
• 1.7 mm, F2.0, or 1.98 mm F2.8
• fi xed fi sheye lenses
• Onboard camera storage up to 128 GB microSD card (not included)
• Rugged outdoor housing with IP67 ingress protection rating and IK10 impact resistance rating
• ONVIF profi le S and G compliant
• Global language support with 15 languages for all QIGs, Web GUI, and online help
• Compliant with UL2900 1, certifi ed by UL Cyber Assurance Program (UL CAP)
