Honeywell Performance Series IP Cameras

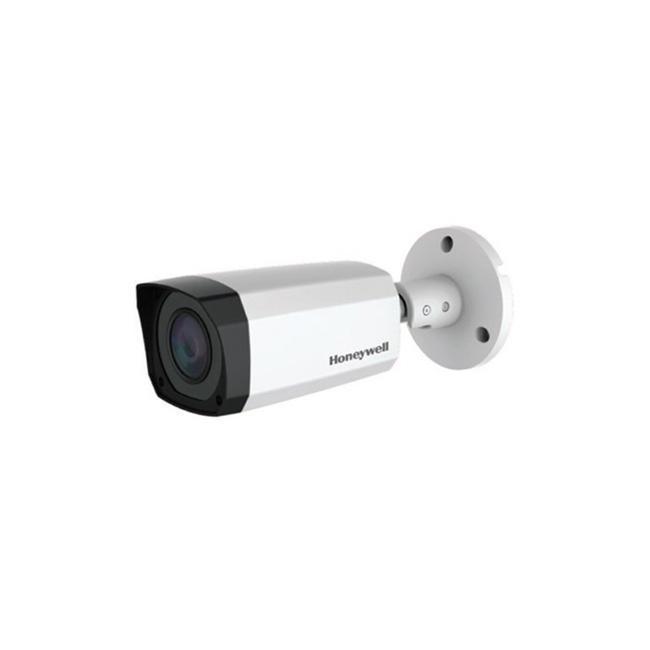

TDN WDR IR MFZ Bullet Camera

Honeywell’s new HBW2PR2/HBW4PR2 bullet cameras are taking quality and reliability to the next level, providing outstanding picture clarity and hassle-free flexible system integration.

Superior Image Quality
• Full HD 1080p 25/30 fps image with a 1/2.7" 2 megapixel sensor or full HD 4 MP 20 fps image with a 1/3" 4 megapixel sensor
• Wide Dynamic Range, up to 120 dB, ensures glare-free images
• True Day/Night provides vivid color images by day and clear black-and-white images at night with ICR
• Excellent low-light performance with 3D noise reduction, saving storage and bandwidth

Flexible Surveillance Solution
• 2.7–12 mm motorized focus/zoom lens at F1.4
• H.264 and MJPEG codec, triple stream support
• IR LEDs provide up to 200 ft (60 m) of illumination in dimly
lit or nighttime scenes (depending on scene reflectance)
• Smart IR technology provides even distribution of IR
• Weatherproof (IP66) camera housing
• –30°C to 60°C (–22°F to 140°F) working temperature
• Plug-and-play compatible with Honeywell 4/8/16-channel Performance Series Embedded NVRs

Easy to Install and Use
• Built-in PoE (Power over Ethernet) eliminates need for separate power supply and associated wiring; 12 VDC inputs where PoE power is unavailable
• Remote configuration through web client or from the NVR
• Compatible with Honeywell’s HBS2-BB junction box, HQA-PM pole mount, and HB34S2-CM corner mount

Market Opportunities
These flexible, fully featured cameras are ideal for a wide range of surveillance applications,
providing excellent picture quality at minimal bandwidth while offering reliable protection against dust, dirt, and water


• 1/2.7" 2 MP or 1/3" 4 MP progressive scan imager
• 2.7–12 mm MFZ lens
• True day/night (IR-cut filter)
• Wide dynamic range up to 120 dB
• Low-light performance down to 0.1 lux (color) or 0 lux with IR LEDs on
• Up to 200 ft (60 m) IR illumination, depending on scene reflectance
• H.264 Main Profile compression
• Triple stream support
• Supports up to 20 connections
• Corridor mode
• PoE, 12 VDC support
• Plug-and-play compatible with Honeywell Performance Series Embedded NVRs
• Weatherproof IP66-rated housing

Honeywell HBW2PR2-HBW4PR2 Honeywell HBW2PR2-HBW4PR2
