Honeywell Performance Series IP Cameras

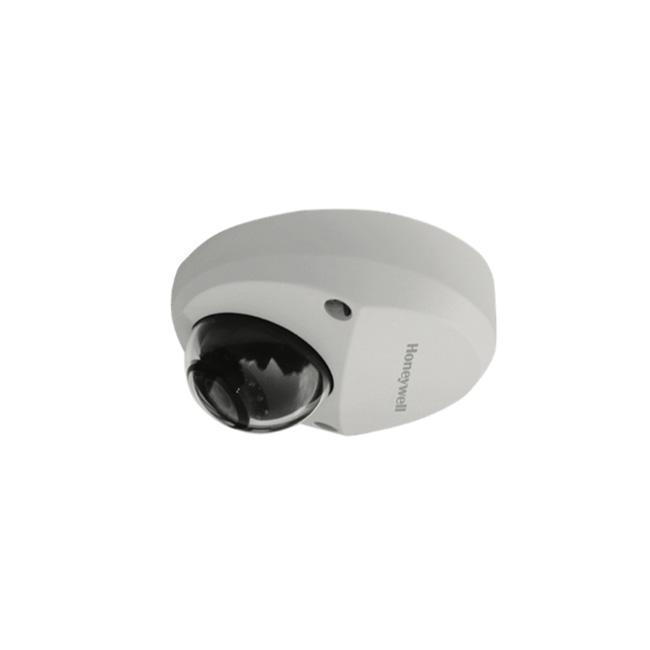

TDN WDR IR Micro Dome Camera

Honeywell’s compact H2W2PRV3/H2W4PRV3 micro dome cameras are taking quality and reliability to the next level, providing outstanding picture clarity and hassle-free flexible system integration.

Superior Image Quality
• Full HD 1080p 25/30 fps image with a 1/2.7” 2 megapixel sensor
or full HD 4 MP 20 fps image with a 1/3” 4 megapixel sensor
• Wide Dynamic Range, up to 120 dB, ensures glare-free images
• True Day/Night provides vivid color images by day and
clear black-and-white images at night with ICR
• Excellent low-light performance with 3D noise reduction, saving storage and bandwidth

Flexible Surveillance Solution
• 2.8 mm fixed lens at F2.0
• H.264 and MJPEG codec, triple stream support
• IR LEDs provide up to 65 ft (20 m) of illumination in dimly lit or nighttime scenes (depending on scene reflectance)
• Smart IR technology provides even distribution of IR
• Weatherproof (IP66) and vandal-resistant (IK10) camera housing
• –30°C to 60°C (–22°F to 140°F) working temperature
• Plug-and-play compatible with Honeywell 4/8/16-channel Performance Series Embedded NVRs

Easy to Install and Use
• Built-in PoE (Power over Ethernet) eliminates need for separate power supply and associated wiring; 12 VDC inputs where PoE power is unavailable
• Remote configuration through web client or from the NVR
• Compatible with Honeywell’s HQA-BB3 junction box, HQA-WK2 wall mount, HQA-PM pole mount, and HB34S2-CM corner mount


• 1/2.7" 2 MP or 1/3" 4 MP progressive scan imager
• 2.8 mm fixed lens
• True day/night (IR-cut filter)
• Wide dynamic range up to 120 dB
• Low-light performance down to 0.01 lux (color) or 0 lux with IR LEDs on
• Up to 65 ft (20 m) IR illumination, depending on scene reflectance
• H.264 Main Profile compression
• Triple stream support
• Supports up to 20 connections
• Corridor mode
• PoE, 12 VDC support
• Plug-and-play compatible with Honeywell Performance Series Embedded NVRs
• IP66 and IK10-rated rugged housing
